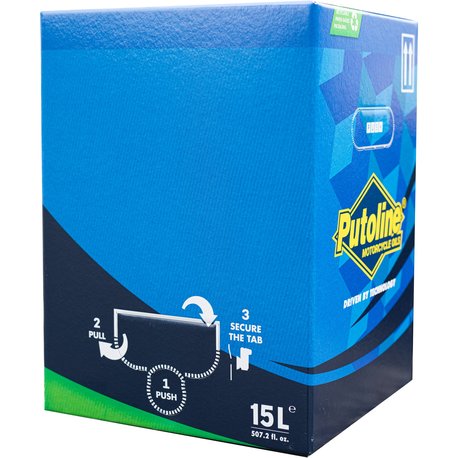

Putoline HPX R 5W Front Fork Oil 15 Liters

Putoline HPX R determines how your front fork dampens. Contents 15 litres.

With 5W, you are in the lighter end of the range. The fork moves faster and feels more comfortable.

What fork oil does

Your front fork springs on its springs, but the damping comes from the oil being forced through small passages. The viscosity of that oil determines how quickly the fork compresses and rebounds. Fresh oil provides noticeably calmer handling than oil that has been in for years.

Thicker or thinner

• A lighter oil allows the fork to move faster and feels more comfortable.
• A heavier oil slows down the movement and provides more support during hard braking or with a heavily loaded motorcycle.
• Fill both fork legs with exactly the same oil and the same amount. You will immediately feel a difference between left and right in the steering behaviour.

Filling and checking level

The oil level in a fork is measured from the top of the fork tube, with the spring removed and the fork fully compressed. This measurement is in your workshop manual and is more accurate than measuring by volume. A few millimetres difference in level noticeably changes the damping at the end of the stroke.

Features

• Product line: HPX R
• Viscosity: 5W
• Contents: 15 litres
• Weight: 15.00 kg

Article number

• Reference number: 554-74573
• Manufacturer part number: 74573

Are you unsure which version is suitable for your motorcycle? Contact us and we will help you.
